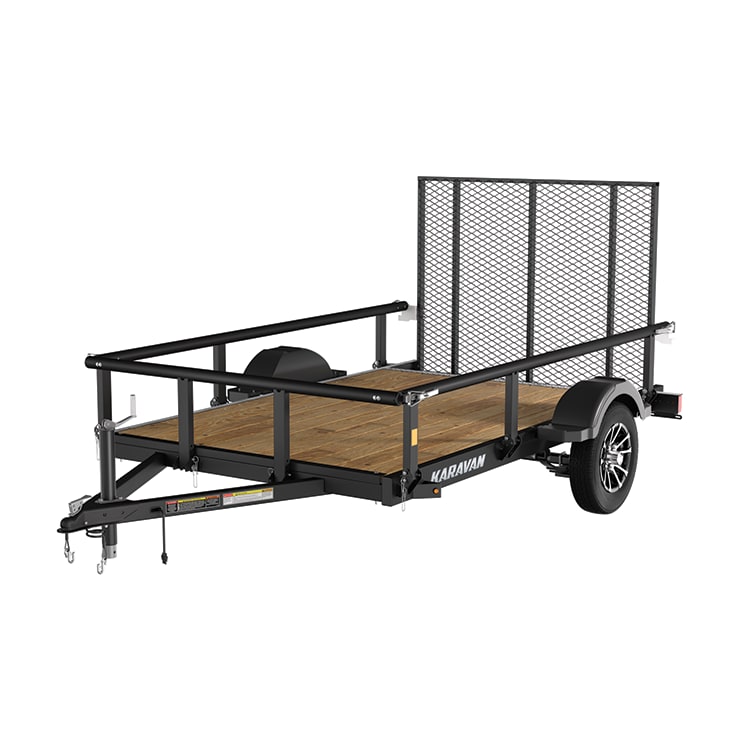

5.5x9ft. Steel Utility Trailer

From transporting a zero-turn mower to hauling a heavy load of lumber, this rugged 5.5×9 ft. Steel Utility Trailer is ready for nearly any task. Patented fold-down rails allow for loading via forklift. Road performance is excellent via Karavan’s SwayControl™ and QuietTow™ engineering. Reliability is built-in with smart lighting and wheel-bearing systems. It looks good, too, with a powder coat finish as attractive as it is durable.

SKU: N/A Category:

Looking for Karavan Trailers Near You?

Find a Dealer

Features

  • Innovative and Patented Fold-Down Rails

    Allows easy side loading, longer and wider loads; removable

  • SwayControl™ Engineering

    Welded tubular steel frame and A-frame tongue for better handling

  • 17-Step Powder Coat Finish

    Long-lasting protection vs. spray technique used on most trailers

  • QuietTow™ Componentry

    Less noise via lockable tensioner latches, nylon bushing springs

  • Heavy Duty Removable Ramp

    Expanded metal to support the loading of heavy equipment

  • Wood Plank Floor

    Treated 2 x 6" deck boards protect against decay and termites

  • Coated Self-Coiling Safety Cables

    Cables coil out of the way when not in use

  • High Reliability ShortFree™ Lighting System

    Fully grounded and all plug (no Scotchloks); wiring is concealed

  • Sure-Lube Wheel Bearing Grease System

    Allows quick and clean greasing for easy maintenance

  • Tongue Jack Included

    Foot plate sold separately

  • Integrated Dovetail

    Reduces ramp angle for easy loading

Specifications

Overall Width

88"

Overall Length

157"

Bed Width

67"

Bed Length

108"

Tailgate Height

49"

Trailer Weight

825 lb

GVWR

2990 lb

Carrying Capacity

2165 lb

Tailgate Capacity

2165 lb

Tire Size

ST85/80R13D

Hitch Ball Size

2"

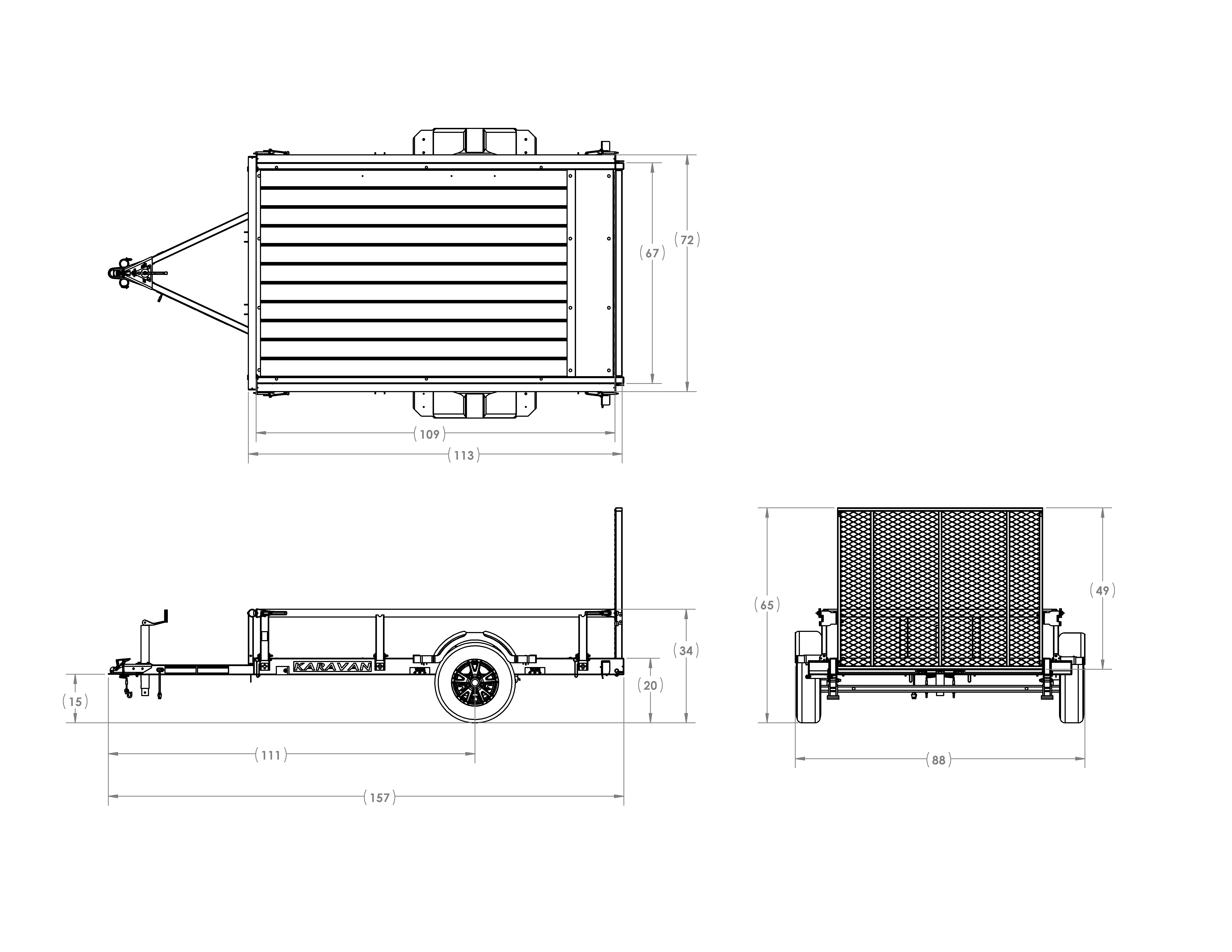

5.5x9ft. Steel Utility Trailer CAD
