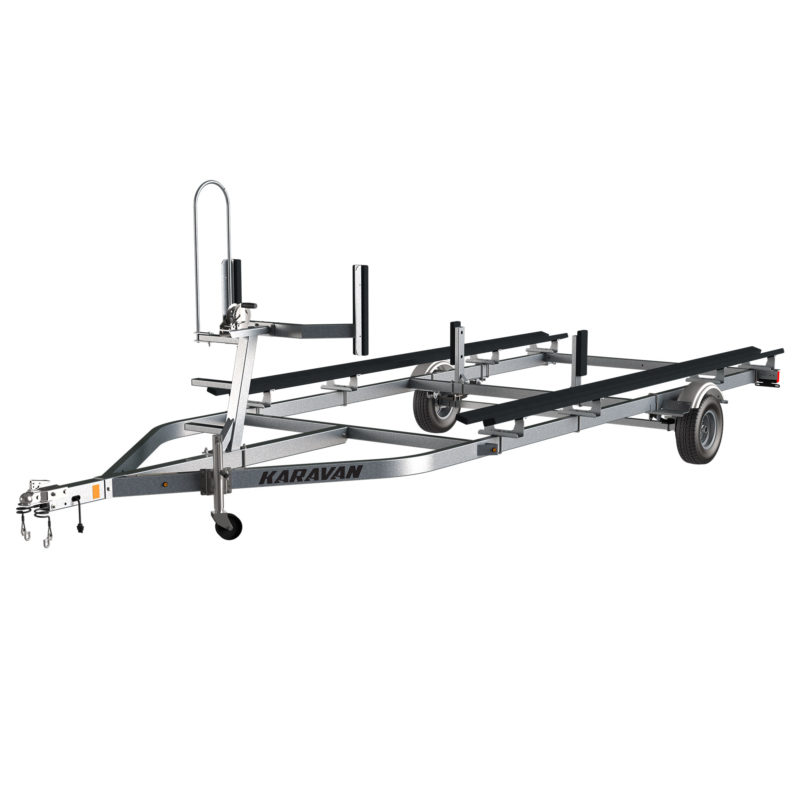

Single Axle Small Pontoon Trailer

An excellent fit for smaller pontoons, the Single Axle Small Pontoon Trailer can fit pontoons up to 18′ in length. This model is easy to move and turn, given its single axle design. This trailer also looks good, with a galvanized or powder-coated finish as attractive as it is durable. Reliability is built in with smart lighting and wheel bearing systems.

SKU: N/A Category:

Looking for Karavan Trailers Near You?

Find a Dealer

Features

  • SwayControl™ Engineering

    Welded tubular steel frame and adjustable axle

  • Durable and Attractive High Quality Finish

    Choose either our galvanized or 17-step powder coating option

  • Tritoon Kit Compatible

    Available tritoon kit is designed to fit this model

  • Winch Stand Ladder

    Easily access your pontoon

  • QuietTow™ Componentry

    Less noise on spring axle models via nylon bushings

  • High Reliability ShortFree™ Lighting System

    Fully grounded and all plug (no Scotchloks); wiring is concealed

  • Sure-Lube Wheel Bearing Grease System

    Allows quick and clean greasing for easy maintenance

  • Coated Self-Coiling Safety Cables

    Cables coil out of the way when not in use

  • Optional Low Maintenance Disc Brakes

  • Optional Tongue Jack Available

Specifications

Overall Width

98"

Overall Length

267"

Boat Length

150-216”

Trailer Weight

680 lb

GVWR

2380 lb

Carrying Capacity

1700 lb

Tire Size

5.30 x 12D

Hitch Ball Size

2"

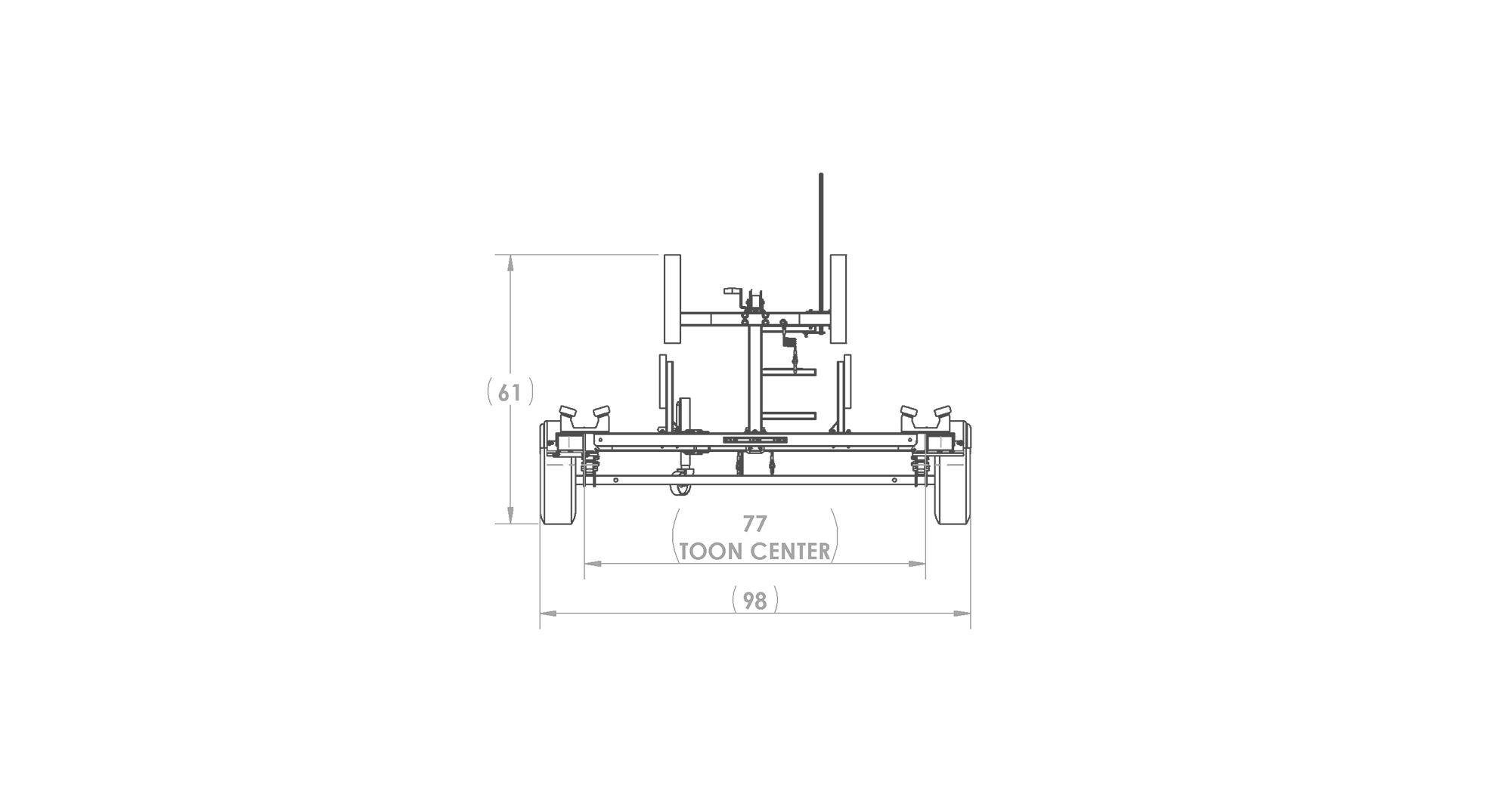

Karavan Trailer's Single Axel Small Pontoon Trailer, model number KDP-1618, Front View Measurement
